Kamoer KMD-542 series compact peristaltic pump stepper motor driver control board

FOB Reference Price:Get Latest Price
$35.00 - $75.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Kamoer
Model Number:
control board
Base Material:
FR-4
Copper Thickness:
1/2OZ 1OZ 2OZ 3OZ
Board Thickness:
1.2mm
Min. Hole Size:
0.10mm
Min. Line Width:
0.1mm(Flash Gold)/0.15mm(HASL)
Min. Line Spacing:
0.1mm/4mil
Surface Finishing:
HASL
Product name:
motor driver control board
Type:
Electronic Board
Application:
stepper motor peristaltic pump
Certificate:
ROSH. ISO9001. UL
Shipment:
DHL EMS
Usage:
OEM Electronics
Material:
FR4 CEM1 CEM3 Hight TG
Feature:
Motor noise optimization
Name:
motor driver control board
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month peristaltic pump stepper motor driver control board
Packaging & Delivery
Packaging Details
in cartons for Kamoer KMD-542 series compact peristaltic pump stepper motor driver control board
Port
shanghai
Kamoer KMD-542 series compact peristaltic pump stepper motor driver control board
Product Description

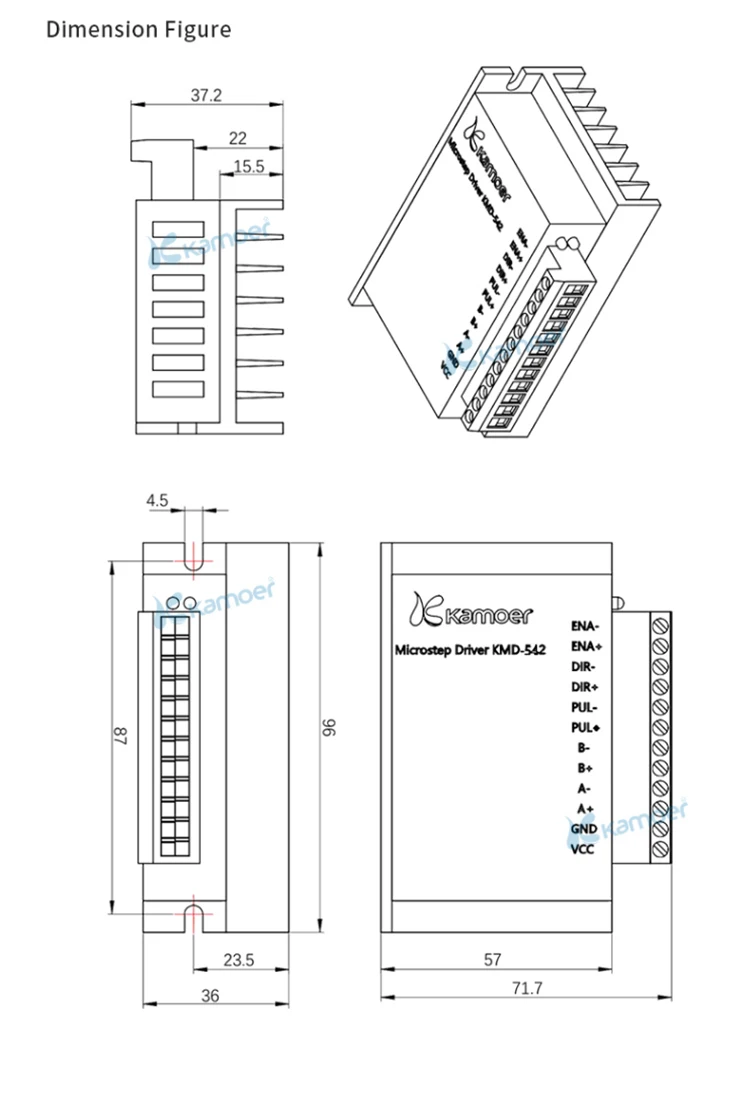

Introduction of KMD-542 Series control board

KMD-542 series stepper motor driver is a 57/42 phase current of 4.0A the following two-phase hybrid stepper motor drive, through the 6-digit DIP switch set 7 subdivision (1 / 2A / 2B / 4/8/16/32) and 8-speed output current (0.5A / 1.0A / 1.5A / 2.0A / 2.5A / 2.8A / 3.0A / 3.5A). Widely used in a variety of small and medium-sized automation equipment and Hardware, such as: medical equipment. Engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tools, crystal grinding machine, automatic assembly and so on. The best assembly equipment. Optimum application target torque 1.8N.m and

below 57 stepper motor. 42 stepper motor .

Features of KMD-542 Series control board

    The segmentation accuracy can be adjusted up to 32

     The max current up to 3.5A, peak current up to 4.0A

     Power supply broad 9~42V; 12-24V is suggested

     The control signal input voltage 3.3~24V

     High-speed optocoupler isolation of the input signal

     H-bridge bipolar constant current driver

     Built-in temperature protection and overcurrent protrction

     Motor noise optimization

     Semi-automatically flow to reduce fever

     Compact, space saving

     With a headsink, more table
